DIMENSIONS
Length: 2m, 3m or 4m
Width: 2.15m
Height: 2.1m
All flat packed units are 300mm high
All assembled units are 2180mm high
| Unit type | Length | Width | Height | Weight |
|---|---|---|---|---|

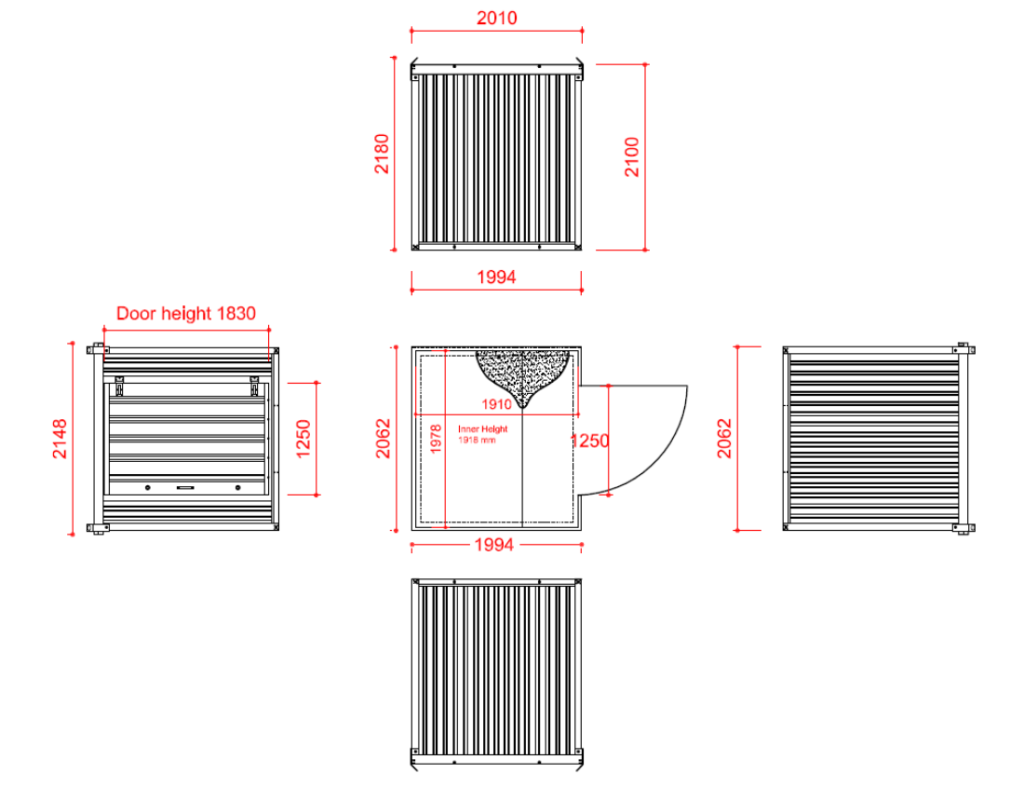

| 2m | 2010mm | 2148mm | 2180mm | 379kg |

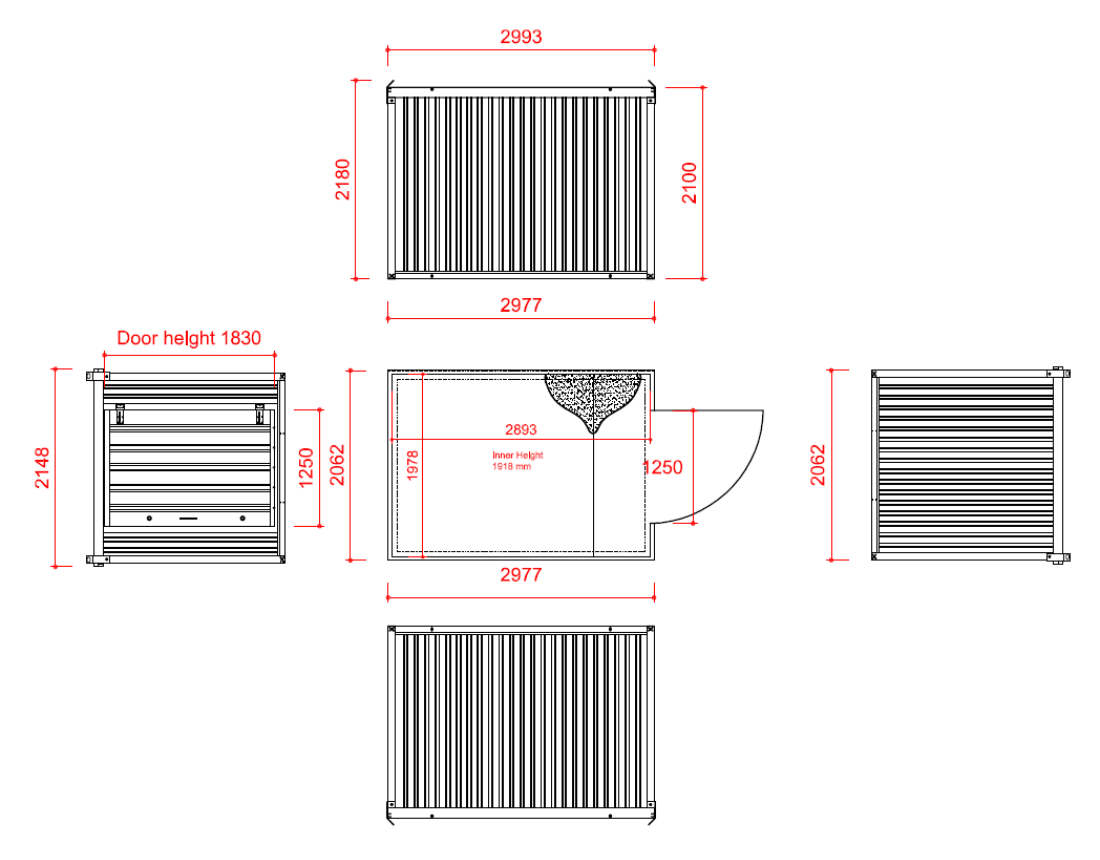

| 3m | 2993mm | 2148mm | 2180mm | 471kg |

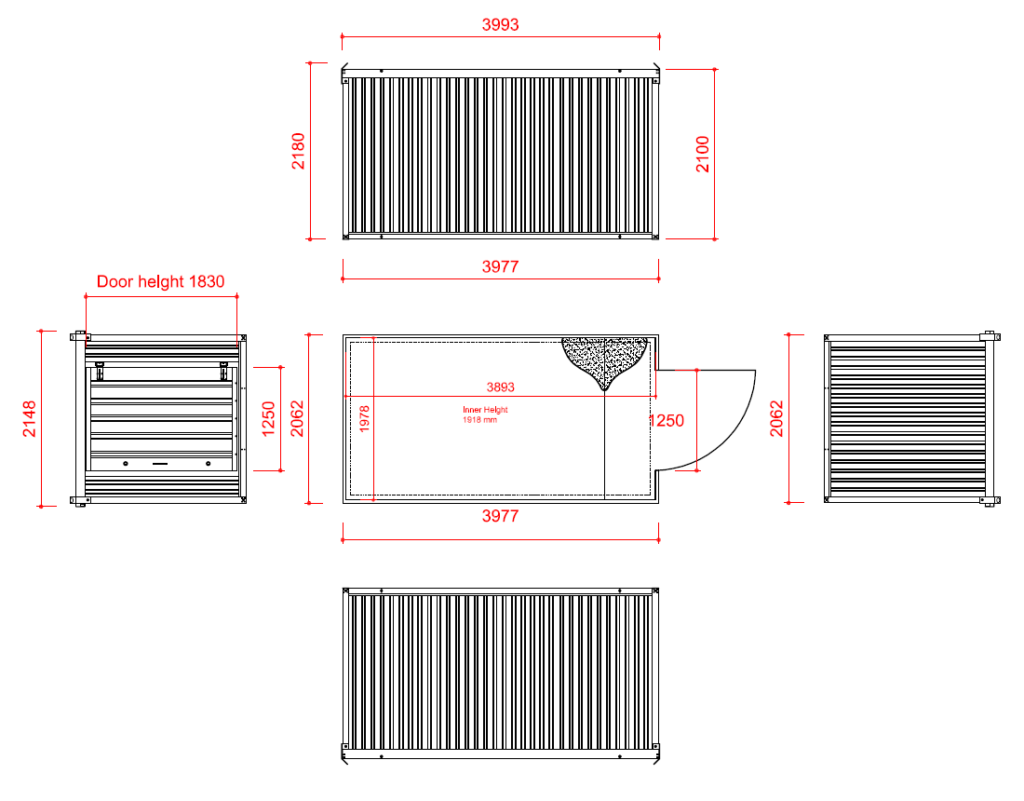

| 4m | 3993mm | 2148mm | 2180mm | 567kg |
INSULATED STORE TECHNICAL DETAILS
Insulated Store is an insulated closed volume demountable unit. Assembly of the unit is simple, using nuts and bolts supplied.
| Feature | 2m unit | 3m unit | 4m unit |
|---|---|---|---|
| Finish | Powder coated | Powder coated | Powder coated |
| Length (mm) | 2010 | 2993 | 3993 |
| Width (mm) | 2148 | 2148 | 2148 |
| Height, flat packed (mm) | 300 | 300 | 300 |
| Height, assembled (mm) | 2180 | 2180 | 2180 |
| Weight (Kg) | 379 | 471 | 567 |
| Door width (mm) | 1250 | 1250 | 1250 |
| Door height (mm) | 1830 | 1830 | 1830 |
CONSTRUCTION COMPONENTS
The main construction elements of the man-portable building are as follows:
WEIGHTS
| Component | 2m unit | 3m unit | 4m unit |
|---|---|---|---|
| Chassis | 89kg | 120kg | 154kg |
| Side panel | 37kg | 55kg | 74kg |
| End panel | 38kg | 38kg | 38kg |
| Door panel | 67kg | 67kg | 67kg |
| Roof panel | 77kg | 102kg | 126kg |
| Outer corners | 5.5kg | 5.5kg | 5.5kg |
| inner corners | 1.3kg | 1.3kg | 1.3kg |
| Lifting eyes | 2.1kg | 2.1kg | 2.1kg |
Floor
Pre-fitted 18mm grade 3 ‘OSB wooden floor ’ screwed to a galvanised steel profile frame.
Chassis
The chassis are a system constructed from a combination of Galvanized U and C Channel steel profiles.
Walls
Panels are composed of outer and inner skin that shall be 0,40mm painted with 5micron primer, 20 micron finishing coat galvanized steel sheet , 40 mm thickness Polyurethane insulation in between.Outer skin is RAL 6005 Green, inner skin is RAL 9002 Off-White.
Roof
Panels are composed of outer and inner skin that shall be 0,40mm painted with 5micron primer, 20 micron finishing coat galvanized steel sheet , 40 mm thickness Polyurethane insulation in between.Outer skin is RAL 6005 Green, inner skin is RAL 9002 Off-White.
Door Panel
0.6 mm corrugated galvanized steel panel. Single door mounted into a steel frame with stainless steel hinges, complete with two way locking mechanism and padlocks, door handle will be on the locking mechanism. There will be Glasswool insulation inside of the door panel.
Lifting Hooks
There will be 4 lifting hoods bolted to corners on the roof
Prices vary depending on building specification requirements and delivery/installation logistics, so please call 01342 830040 to discuss your individual requirements.
Note: Due to our continuous product development programme, we reserve the right to change the specifications without prior notice.
